- Description
- Suitable for wall thickness 140 or 150 mm block.
- 4.5 mm diameter wire.
- 100 mm wide.

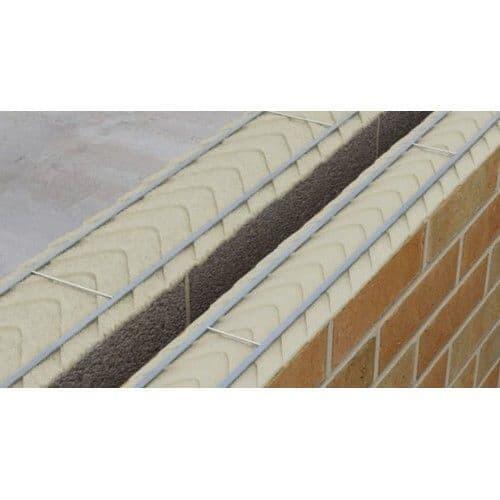

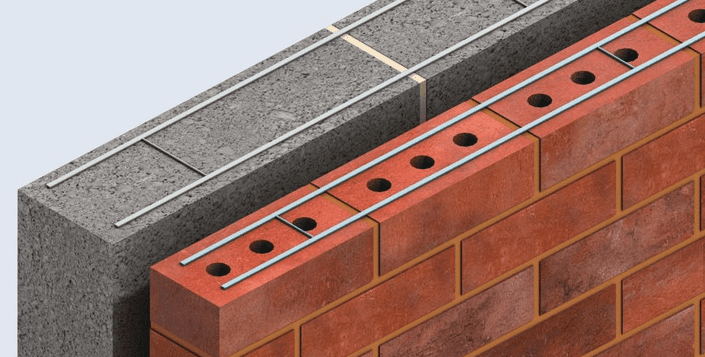

Ancon AMR is a welded wire ladder type reinforcement, manufactured in 2700 mm standard lengths, used to improve the structural performance of masonry walls, in accordance with BS 5628-2: 2005, by providing additional resistance to lateral loads e.g. wind. It can also be used to reduce the risk of cracking either at stress concentrations around openings or as a result of movement, in accordance with BS 5628-3: 2005.
AMR is available in four standard widths, 60, 100, 150 and 175 mm and is suitable for walls 100215 mm thick.
The product is manufactured from five wire sizes which, after flattening, have an equivalent wire diameter of 3, 4 and 5 mm. Longitudinal wires have a minimum characteristic yield strength of 500 N/mm.
Ancon AMR is available in austenitic stainless steel and galvanised steel. Galvanised steel is not suitable for use in the external leaf of a cavity wall.
